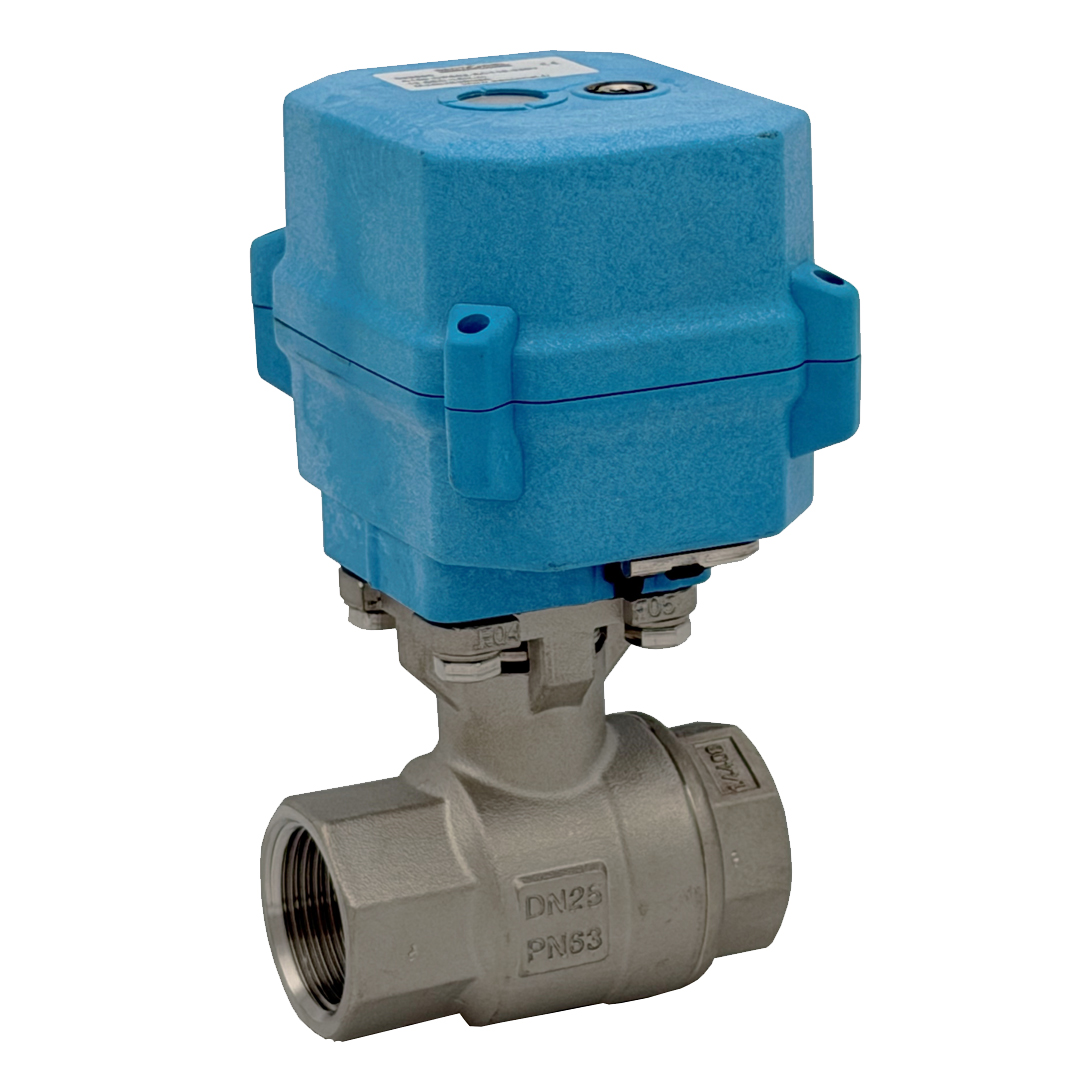

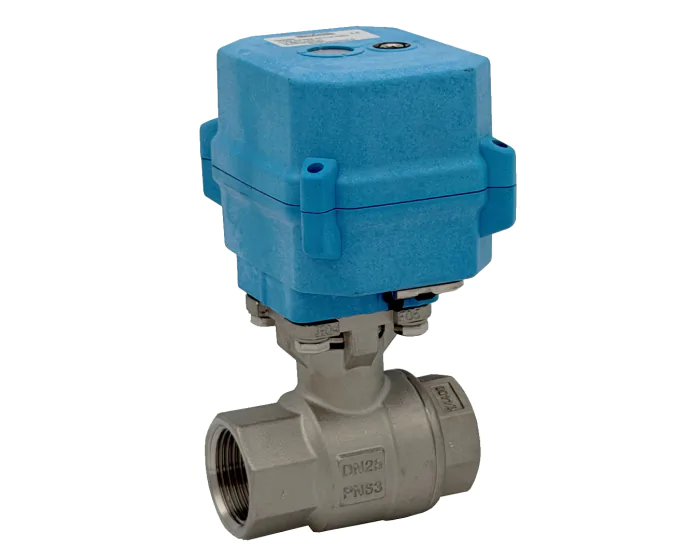

The 715XS 2-piece stainless steel ball valve with PTFE/glass seats is equipped with a T15 2-wire electric actuator with capacitor return. This compact system allows easy wiring, safe automatic return in case of power loss, and reliable cont
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 30% |
| Torque limiter | No |
| Recommended location | Indoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 2 |
| Bore | Full |
| Power (W) | 30 |
| Connections | BSP FF |
| Anti-condensation heater | None |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | T 15 |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN15 - 1/2'' | 272402022500 | S1004665 |
€214.29
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN20 - 3/4'' | 272403022500 | S1004666 |
€222.77
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Full 2-piece body DN25 - 1'' | 272404022500 | S1004667 |
€241.21
(excl. btw)
|
add to cart |
